The post TOM'S KP47 Starlet, that's Tachi-Oiwa Motorsports appeared first on Club4AG.

]]> The KP47 Toyota Starlet here was carefully built and assembled by Tachi-Oiwa Motorsports. That's TOM's Racing, for most of you who've seen their logos on 40 years of race cars in Japan and abroad. Always one step ahead of everyone with making Toyota cars go faster around the raceway.

This was the car in 1973, launched the brand, and the outfit that will grow to being one of Toyota's right hand teams to set the world straight on how to build a fast car.
The KP47 by Tom's won Japan's Grand Championship series with it's fully modified and meticulously honed and balanced K-series engine that revved sky high at 11,000 rpm. This engine, 3K-R was the benchmark reference for all of the Toyota DOHC engines that followed from the 4A-G, 3S-G, 5M-G, 7M-G, G-G,and JZ-G. It was a puny 1300cc, that packed over 190 horses breathing natural atmosphere. No turbo.
With maximum torque at a very narrow peak and 100 lbs-ft at that, those who could drive it fast was far and few in between.

This car comes out of the TOMS's Shop for the Toyota Gazoo Racing Festival in November, once a year, to let everyone hear the screaming engine along the Fuji Speedway main straight.

Perhaps for a Toyota fan, this is another experience on your "Bucket List"

The post TOM'S KP47 Starlet, that's Tachi-Oiwa Motorsports appeared first on Club4AG.

]]> Is this the end of the 4A-GE? 4AG and Hasselgren Engineering https://club4ag.com/is-this-the-end-of-the-4a-g-4ag-and-hasselgren-engineering/ https://club4ag.com/is-this-the-end-of-the-4a-g-4ag-and-hasselgren-engineering/#comments Fri, 18 Jan 2019 17:38:28 +0000 https://club4ag.com/?p=8492 Is this the end of the 4A-G?   The last 16 valve 4A-G was produced in 1993; the last 20 valve in 2002.  Moreover, the last of the ‘A’ series engines, 7A-F, was produced in 2002.  Even Toyota (TRD) has dropped its technical association with North American’s Championship Automobile Racing Teams (CART) and no longer supports the Toyota Formula Atlantic Championship series.  The hand writing is/was on the wall.  TRD Formula Atlantic parts are no longer readily procurable from the original source, TRD North America.  For the last two years, 2005 thru 2006, Toyota simply gave up and awarded the […]

The post Is this the end of the 4A-GE? 4AG and Hasselgren Engineering appeared first on Club4AG.

]]> Is this the end of the 4A-G?



The last 16 valve 4A-G was produced in 1993; the last 20 valve in 2002.  Moreover, the last of the ‘A’ series engines, 7A-F, was produced in 2002.  Even Toyota (TRD) has dropped its technical association with North American’s Championship Automobile Racing Teams (CART) and no longer supports the Toyota Formula Atlantic Championship series.  The hand writing is/was on the wall.  TRD Formula Atlantic parts are no longer readily procurable from the original source, TRD North America.  For the last two years, 2005 thru 2006, Toyota simply gave up and awarded the Toyota Formula Atlantic engine contract to Hasselgren Engineering.  So great was his dominance, no other engine producer could compete.  And in my opinion, even TRD would not, nor could they, compete as an engine supplier or race engineering service.  A change in Toyota’s (North America) corporate direction had Toyota abandon its support of the “G” type, “Sport engines”, and the entry level professional driving series.



On April 9, 2007, this author had the privilege of talking to Paul Hasselgren of Hasselgren Engineering Inc.  He has been in the race engine business for many, many years.  He started in the ‘70s on Formula Fords and moved on to the Atlantic engines in 1989.  And for those new to the 4A-G engine and do not know who he is, all I can say is, he is arguably the greatest 4A-G engine builder ever.  He has won more engine supplier titles using Toyota’s 4A-G and is associated with more SCCA Atlantic and Group 3 wins with his engines than anyone else.  The durability, 1,100 plus miles between overhauls, and power from his naturally aspirated 4A-G engines speak for themselves.



Now that TRD (North America) has left him and support of the 4A-G to move on to Midget racing and push rod NASCAR engines, is this the end of the 4A-G?  Paul sees parallels with the Cosworth BDA, which once dominated the Atlantic series and then became obsolete.  Even with a combustion head designed from their famous DFV V8 engines, parts are no longer available.  The Cosworth BDA, as many of their parts, are now categorized as historic and are collectable.  The iron blocks from South African, forklifts have long since dried up.  BDA engines are “restored” and no longer “developed” for racing.  However, it is interesting to note that by installing the latest engine management system and Hasselgren’s latest inlet injectors, this engine could be competitive again.  The trouble is there are no parts and no one willing to finance such an endeavor and push its envelope.



Such is the fate of the 4A-G Atlantic engine?  A new, ready to race and challenge all comers, naturally aspirated, 4A-G motor will cost in the neighborhood of $53K.   This engine is said to have +250hp and +130ft-lb torque.  Torque comes on around 5,500 and flattens out at 7,500 RPM.  Horsepower tops off above 10,000.  It is the last development derived from rules and parts meant to keep cost down and development to a minimum.



What the Toyota Atlantic series did do for the 4A-G, through Hasselgren Eng, was to optimize performance within the rules and within the limitations of the TRD parts.  The TRD billet crankshafts (from SUN or SCAT) have a fundamental out of balance that was corrected by “adding weight” to the #3 counter weight journal.  Lubrication to the valve train is critically limited, and special DLC (diamond like carbon) coatings are necessary on the followers and other parts of the valve train.  Titanium valves are necessary to run over 12,000rpms.  The TRD pistons have to be coated for friction reductions and thermal protection.  Anodize in the ring groove is required to increase longevity and prevent micro welding.  Special small orifice oil squirters are necessary to lubricate the cylinder walls.  The TRD dry sump pan along with the TRD main and rod bearings are a big source of power limitation.  Even the stock water pump robs about 14hps and is not optimized to effectively or efficiently conduct heat into the cooling system.



Is there more power in the 4A-G?  Paul seems to think so, if not limited by TRD parts and the customer’s budget.  But where is the incentive?  Toyota has no more marketing interest.  The 4A-G was not produced to be a race engine, and outside of the Hasselgren’s modifications for the Toyota Formula Atlantic series, the 4A-G design is limited in many ways.  Nevertheless, individuals and race teams can readily buy one (or more) of his 4A-G engines and be a class above anything else within 1800 to 1600cc’s, and if he did come up with the next and last 4A-G development it would soon be outlawed and banned.  Sanctioning bodies mandate fair competition and a 4A-G Hasselgren motor as it stands now is almost unfair.



His engines (its power) have made Swift Engineering force Hewland to redesign their gearbox to be able to handle the Atlantic 4A-G’s torque.  Something that was adequate for the Cosworth BDA in its time.  In addition, his engines effectively turned the Toyota Formula Atlantic series into a ‘sole source supplier’, spec., series for the last two years, where if you wanted to be competitive you had to have a Hasselgren motor.



The last question is, will Formula D, drifting, be able to or even want to support a twenty plus year old car and a small engine package?  Or can the club racer afford the last 4A-G development.  Hasselgren has what looks to be the last supply of TRD Atlantic camshafts, and Hasselgren is the only one with this level of hands on “go fast” knowledge that has even the remotest possibility to go up against large bore, large displacement V8s and V10s.



Other Notes from our meeting:

  • Hasselgren machines all of their parts, e.g., front covers (replaces oil pump) and fuel rails (direct mouth, inlet, injection)
  • Hasselgren uses Bosch injection
  • Blocks are Honed and line bored Hot (at expected operating temperature)
  • Hasselgren specializes in building and developing complete race engines.  Individual parts are not “normally” taken in.
  • Currently there are 14 employees, a couple of engineers, a couple of machinist, and a couple of assemblers, etc.
  • Hasselgren developed their own oil squirters for the 4A-G.   The U.S. GZ block comes without squirters.
  • The 12.7:1 compression ratio mandated by the Toyota Atlantic “rules” limited performance, ~15:1 could be achieved.
  • There were several TRD parts that were identified as performance limiters:
    • The individual port aluminum Intake manifold.
    • The stock water pump
    • The dry sump pan
    • And depending which piston mfg. was used by TRD, it was performance limiting.  Coatings had to be used.
  • Hasselgren saved/shaved 15lbs from the 4A-G Atlantic engine when Champ Car went to the 014 Swift chassis from the 008 Swift chassis.
  • There are no coating on inner or outer valve springs (Eibach)
  • Higher RPMs are limited by the valve train weight.  Hasselgren is using Titanium valves.
  • Hasselgren’s Atlantic engines have been optimized around the TRD Atlantic Cam profile.  The intake runners and exhaust pipe lengths are set around the tuning of these camshafts.
  • Engine seals are OEM Toyota.  They are able to maintain 10 ~ 14 inches of vacuum.  Further development was not pursued.
  • Timing belts are after market, high strength, H-NBR, full curvilinear teeth
  • Small port heads are “better” (tuned – breathing) at higher RPMS, above 10,000rpms
  • Large port head are “better” (tuned – breathing) at lower RPMS, below 10,000rpms
  • Hasselgren “straps” the main bearing caps to the engine block’s skirt.  #2 and #4 mains are tied together to add greater stiffness and prevent the crank from breaking at the #3 journal.
  • Oil passages in both the head and block are not modified.
  • Any modifications to the race engine or to any drive train component, no matter how small, has to be considered as an effect to the total system and could be detrimental to something else not considered.

Please note, attempts have been made to allow Hasselgren Engineering to clarify and/or correct the conversation as I have remembered it.  There has been no response.  Information for this article is for your entertainment and its accuracy is a subject for further review.



Within a few blocks of the Pyramid Brewery and down the street from the railroad tracks, almost invisible, is Hasselgren Engineering.  It is low key.  The Hasselgren sign is easily hidden by small trucks parked in front.  Paul Hasselgren shares his facilities with a well-known Alfa Romeo parts supplier.  Inside it is stuffed full “go-fasts” goodies, and is a ‘Gear Head’s’ dream shop.  A look inside can be found on www.hasselgren.com.

Article by Richard White, an avid Toyota fan, and a very respected engineer of a long career in key aerospace industry.

The post Is this the end of the 4A-GE? 4AG and Hasselgren Engineering appeared first on Club4AG.

]]> https://club4ag.com/is-this-the-end-of-the-4a-g-4ag-and-hasselgren-engineering/feed/ 1 Toresor Impulse Full Carbon Fiber AE86 at Tokyo Auto Salon 2019 https://club4ag.com/toresor-impulse-full-carbon-fiber-ae86-at-tokyo-auto-salon-2019/ Thu, 17 Jan 2019 12:44:58 +0000 http://club4ag.com/?p=8481 At the Tokyo Auto Salon this year 2019, a small booth by Impulse (Japan) had a neat project car for AE86 owners.  A FULL Carbon Fiber Body AE86 that's been in the works since 2014.  It is maturing to a very fine meticulous kit. 25mm Wide-body Fenders top off the full list of parts from all fenders, doors, roof, rain gutter, hood, hatch, front canards and splitter, along with B pillars.  All the panels line up like stock and details of the weave is amazing! Graced with 15x8 wheels and 205/50-15 Dunlop Direzza B2 stretched over it, it's an amazing […]

The post Toresor Impulse Full Carbon Fiber AE86 at Tokyo Auto Salon 2019 appeared first on Club4AG.

]]> At the Tokyo Auto Salon this year 2019, a small booth by Impulse (Japan) had a neat project car for AE86 owners.  A FULL Carbon Fiber Body AE86 that's been in the works since 2014.  It is maturing to a very fine meticulous kit.
25mm Wide-body Fenders top off the full list of parts from all fenders, doors, roof, rain gutter, hood, hatch, front canards and splitter, along with B pillars.  All the panels line up like stock and details of the weave is amazing!

Graced with 15x8 wheels and 205/50-15 Dunlop Direzza B2 stretched over it, it's an amazing machine to even just stare.
Created by the carbon fiber masters at Impulse and a full line of parts on a 4A-GE 5 Valve (20V) engine along with the shop original direct ignition kit using coils from Honda S2000 on a special Motec ECU.
Fully stitched and caged body I am sure works tremendously to supporting the carbon parts well in alignment.
The rigid frame giving crazy maneuverability and handling precision on track too.
The care taken to shave weight goes all the way to the use of their titanium hood support rods!
Front wheels supported by alignment correction kits from Zegrace G offset ackerman knuckle and full adjustable arms.
Especially nice is the wide body extensions that cover the meeting surface of bumper to fender, eliminating the classic issue of leading edge to look ugly having cut off to clear wider track and larger wheels.

It is one cherry ass AE86. For those with big budgets.

Webpage: TORESOR.JP

The post Toresor Impulse Full Carbon Fiber AE86 at Tokyo Auto Salon 2019 appeared first on Club4AG.

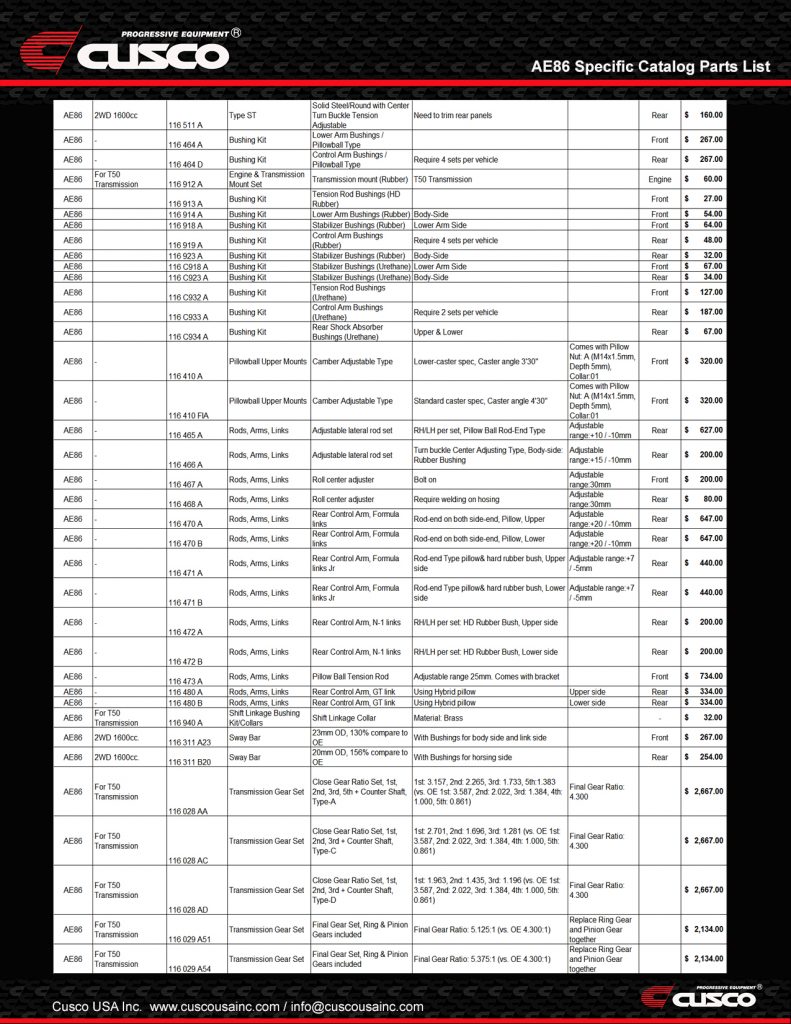

]]> AE86 - TOYOTA Corolla GT-S / LEVIN / TRUENO - CUSCO PARTS LISTING https://club4ag.com/cusco-ae86-parts-available-as-of-2018/ Thu, 19 Jul 2018 19:39:44 +0000 http://club4ag.com/?p=6786 AE86 - TOYOTA Corolla GT-S / LEVIN / TRUENO - CUSCO PARTS LISTING *some of the items have been discontinued, however left in there as reference historical. DOWNLOAD PDF VERSION HERE

The post AE86 - TOYOTA Corolla GT-S / LEVIN / TRUENO - CUSCO PARTS LISTING appeared first on Club4AG.

]]> AE86 - TOYOTA Corolla GT-S / LEVIN / TRUENO - CUSCO PARTS LISTING

*some of the items have been discontinued, however left in there as reference historical.

DOWNLOAD PDF VERSION HERE

The post AE86 - TOYOTA Corolla GT-S / LEVIN / TRUENO - CUSCO PARTS LISTING appeared first on Club4AG.

]]> Vintage Japanese Car Pillow Ball Tension Rods https://club4ag.com/vintage-japanese-car-pillow-ball-tension-rods/ Thu, 19 Jul 2018 19:36:42 +0000 http://club4ag.com/?p=6780 Toyota Pillow Ball Tension Rods OEM Bracket Compatible, available for: Nissan Skyline (GC10/110) Nissan Fairlady Z (S30/S130) Toyota Corolla Levin/Trueno/GT-S (TE27/AE86) Toyota Celica (TA22/RA22)   There is a renewed intersest for "old school" vintage Japanese cars these days, and we can't be more thrilled to see such trends taking place. Cusco has been racing and rallying since 1977 and Toyota Corolla, Celica, Nissan GTR, Fairlady Z were all part of cars central to our team's racing and rallying history. We've taken some time to revisit some of these parts we made over the years and decided to update some with […]

The post Vintage Japanese Car Pillow Ball Tension Rods appeared first on Club4AG.

]]>

  • Toyota Pillow Ball Tension Rods
    OEM Bracket Compatible, available for:

    Nissan Skyline (GC10/110)
    Nissan Fairlady Z (S30/S130)

    Toyota Corolla Levin/Trueno/GT-S (TE27/AE86)
    Toyota Celica (TA22/RA22)



    There is a renewed intersest for "old school" vintage Japanese cars these days, and we can't be more thrilled to see such trends taking place.
    Cusco has been racing and rallying since 1977 and Toyota Corolla, Celica, Nissan GTR, Fairlady Z were all part of cars central to our team's racing and rallying history.
    We've taken some time to revisit some of these parts we made over the years and decided to update some with new designs.

    The inner rod portion of the rod used in this front tension rod set is forged, yet offered at reasonable prices with new manufacturing technologies possible today.
    Designed with the same durability in mind for rallyists as well as racing enthusiasts, the tension rods will help retain the critical front wheel alignment under loads, and offer adjustments beyond the factory fixed positions to cater the response and precision of the vintage cars.
    It is part of a critical suspension system upgrade for the classic cars, to ensure it is both competitive, and in tune with modern tacitly.

    • Forged rod construction
    • Chromoly case construction
    • Prevents toe alignment changes under load
    • Allows a finer level of alignment changes
    • Bolsters front suspension for higher braking forces applied by today's high performance tire loads.
    • Bolt-on installation
    • Dust boots and aircraft-grade pillow ball joints.
    • Turn Buckle Adjustment range (-10mm ~ +10mm, 20mm overall)
    • Estimated Installation Time 1 Hour.





Pillow Ball Tension Rods
(Vintage Cars)		 MSRP $533 USD Turn Buckle Adjustment  -10mm～+10mm (20mm total)
MAKE CHASSIS PART JAN CODE USEAGE
Toyota Corolla Levin /GT-S

Toyota Sprinter Trueno

 AE86 116-473-B 4996338024404 Reinforce/Racing

Japan Street Legal
TE27 108-473-B 4996338024411 Reinforce/Racing
Toyota Celica TA22(TA2#)
RA22(RA2#)		 140-473-B 4996338024473 Reinforce/Racing
Nissan Skyline #GC10
#GC110		 225-473-B 4996338024442 Reinforce/Racing
Nissan Fairlady Z
(240Z, 260Z, 280Z)		 S30 246-473-B 4996338024428 Reinforce/Racing
S130 247-473-B 4996338024435 Reinforce/Racing



The post Vintage Japanese Car Pillow Ball Tension Rods appeared first on Club4AG.

]]> AE86 N2 Challenge, Keeping the foundation of Japanese Motorsports https://club4ag.com/ae86_n2_challege/ Sat, 01 Jul 2017 20:03:33 +0000 http://club4ag.com/?p=6274 AE86 N2 Challenge, Keeping the foundation of Japanese MotorsportsWhat drives Japanese motorsports... The base foundation of their spirit and mannerism, as well as rules of engagement is portrayed in places like Semi-vintage N2 AE86 racing...   N2 is honed to a point today, to where managing it takes a skill of a complete and utter specialist, and even they are less confident than many cars when dicing at such handling and speed edges. It's part of what makes the N2 so special... as it just weeds out the folks who can and can't go there... Very tenaciously arranged end links, […]

The post AE86 N2 Challenge, Keeping the foundation of Japanese Motorsports appeared first on Club4AG.

]]>
86style_hotversion-ae86-summer-battle_2013_216_r
AE86 N2 Challenge, Keeping the foundation of Japanese MotorsportsWhat drives Japanese motorsports... The base foundation of their spirit and mannerism, as well as rules of engagement is portrayed in places like Semi-vintage N2 AE86 racing...

N2 is honed to a point today, to where managing it takes a skill of a complete and utter specialist, and even they are less confident than many cars when dicing at such handling and speed edges. It's part of what makes the N2 so special... as it just weeds out the folks who can and can't go there... Very tenaciously arranged end links, rods, and alignment, and tuned for sheer grip and peaks, and special tires aligned to peak contact and not for forgiveness. It's a handful when it is setup as such.
Engines based on the 4A-GE are peaky, with analog controls and sharpened still, by hand of the crafters with balancing, edging, knifing, and carving the perfect hand-ground camshafts and rods. Cranks are balanced to Formula Atlantic specs and allow the archaic engines to breathe effectively and nominally at 9000 rpm, sometimes beyond. Each body is brought down to bare shell, panels shaved in micrometer thickness accuracy, and frame gusseted in strategic areas known only to N2 specialists.
Crafting each car in the same care taken to forge a katana sword taught by centuries of metallurgy and forging mastery. That's called "takumi" in a single word, in Japanese language. It is a word reserved for the most esoteric of building, from purification of the mind and soul, to the last stroke of the polishing hand to reach that limit of Earthly perfection. Mr.Sakurai of TRD Technocraft was the father of such agenda in the days of the AE86 N2, and is survived by his followers who cherish the flame of his spirit to this day.
The N2 is this level of racing. It is something fought with pride of craftspeople who all have a mutual respect for each other, and isn’t driven by politics and investors. It is a private series that teams follow a order of fundamental rules. No one cheats or brings in technologies unfair or unmannerly to N2’s historic values and ancestors of N2 immortal talents, they regard highly.

It's the reason people like Keiichi Tsuchiya regards the AE86 so highly, as he lived in the era of N2 racing, and while he aspired to race in them, he was just 1 year too late to get a seat in the famed N2 cup. It is why he wanted to start the N2 Vintage Racing series under Hot Version label sanction a full decade later, to get others to partake in this unique Japanese era of racing, where the most talented and passionate of Japanese drivers and teams would spend sweat and time honing one car to master-crafting, and race at the ragged edges of skills. Crafting simplicity to the most acute of performance edge.

American culture is somewhat different and people get bloody-thirsty for winning, and folks get litigious too with rules interpretation. So it's a different community. 　 Someday though... N2 is unique in that it is a blend of historic racing type ritual, but taking in serious competition... It's one of those things where there is a mix of Japanese uniqueness of comrades, community, utter respect towards opponents, and isolated colloquialism, and spirit of founders...
Something like this doesn't translate well in a culture like America where people just have very different backgrounds of mixed nationalities and standards toward winning and losing. We, Americans tend to battle for personal reasons above community goals. It's not wrong really, just different. And it is certainly rather a unique mind-set for sure.

The post AE86 N2 Challenge, Keeping the foundation of Japanese Motorsports appeared first on Club4AG.

]]> Arizona's 86'ers are some of the best enthusiasts in the USA! https://club4ag.com/arizonas-86ers-are-one-of-the-best-enthusiasts-in-the-usa/ Tue, 23 Feb 2016 20:41:02 +0000 http://club4ag.com/?p=6234 On a perfect, windless, blue sky day, the third-annual AZ86BASH happened with Jeff Sides at the helm of the organizing party, and supported by a couple dozen of Arizona's best shops and manufacturers.   Arizona's 86 owners from AE86's to FRS/BRZ are friendly, collective, and generally the most pleasant fun-seekers.  Never unruly and always open-minded, EVER so friendly. It isn't the biggest event, but it is one of the best in the nation for 86 folks to visit.  Make it a point next year for sure! Earnhardt Toyota/Scion Mesa, Arizona USA AZ86BASH3

The post Arizona's 86'ers are some of the best enthusiasts in the USA! appeared first on Club4AG.

]]> On a perfect, windless, blue sky day, the third-annual AZ86BASH happened with Jeff Sides at the helm of the organizing party, and supported by a couple dozen of Arizona's best shops and manufacturers.   Arizona's 86 owners from AE86's to FRS/BRZ are friendly, collective, and generally the most pleasant fun-seekers.  Never unruly and always open-minded, EVER so friendly.
It isn't the biggest event, but it is one of the best in the nation for 86 folks to visit.  Make it a point next year for sure!

Earnhardt Toyota/Scion
Mesa, Arizona USA
AZ86BASH3

12747252_10207823813369557_2119486353213316072_o (1) 12778764_10207823812929546_6952857319525603369_o 12768109_10207823812729541_5946868381708036152_o 12771636_10207823812129526_1602208623236578095_o 12771715_10207823811369507_4475907682882285787_o 1517547_10208462733395197_2049709342739735844_n 12111927_10208462733115190_4182844820160645679_n 12744168_10208462732315170_1221598539899499669_n 12733429_10208462732115165_8979005408800125867_n 12747228_10207823821889770_7727846801724875550_o 12764652_10207823820809743_2913853572005507888_o 12771523_10207823820409733_9121687293335199411_o 12771772_10207823820209728_4865088180423929823_o 12779032_10207823819969722_7662922552394209060_o 12764471_10207823819409708_6120646048727627494_o 12779134_10207823818849694_1620316826281843802_o 12768104_10207823818689690_2870475748380114430_o 12764316_10207823818329681_5438515028996309949_o 12525573_10207823818169677_5766702465103791743_o 12778960_10207823817929671_8212204976592606985_o 12747243_10207823817809668_3163525376498119983_o 12418925_10207823817609663_1029771883674843682_o 12771792_10207823817449659_2148545872874046837_o 10683729_10207823817129651_2456758876241303359_o 10683590_10207823816809643_6793468490155530716_o 12747238_10207823816409633_77869119790231098_o 12747906_10207823816169627_2074380833599788508_o 12779248_10207823815329606_2240054163583885351_o 12747966_10207823814849594_2580482266880427475_o 12779171_10207823814649589_7373509589145693162_o 12747929_10207823814369582_4403076755402064919_o 12771786_10207823814089575_4213756427403360244_o 12783674_10207823813889570_6348210355905378651_o 12747480_10207823813569562_2249123043162439777_o

The post Arizona's 86'ers are some of the best enthusiasts in the USA! appeared first on Club4AG.

]]> AE86, AE82, TRD, Vintage Showroom Catalogs https://club4ag.com/ae86-vintage-showroom-catalogs/ Sun, 03 Jan 2016 19:18:21 +0000 http://club4ag.com/?p=5777 AE86, AE82, TRD, Vintage Showroom Catalogs Japanese 1986 Corolla Levin Catalog The Corolla Levin and Sprinter Trueno were sold in two separate dealership networks in Japan back in the 1980's, so the brochures are produced separately for the respective dealer networks. Interestingly, both the Levin and Trueno featured the same GT-APEX grade with varying degrees of decontented lower grades.   Note also that the Japanese cars also featured a female-targeted AE85 called the Levin Lime, and Trueno Lisse.  If you look closely at the accessories, you can also see interesting era-specific items like covered bumper fog lamps, CB-band radio, and […]

The post AE86, AE82, TRD, Vintage Showroom Catalogs appeared first on Club4AG.

]]>

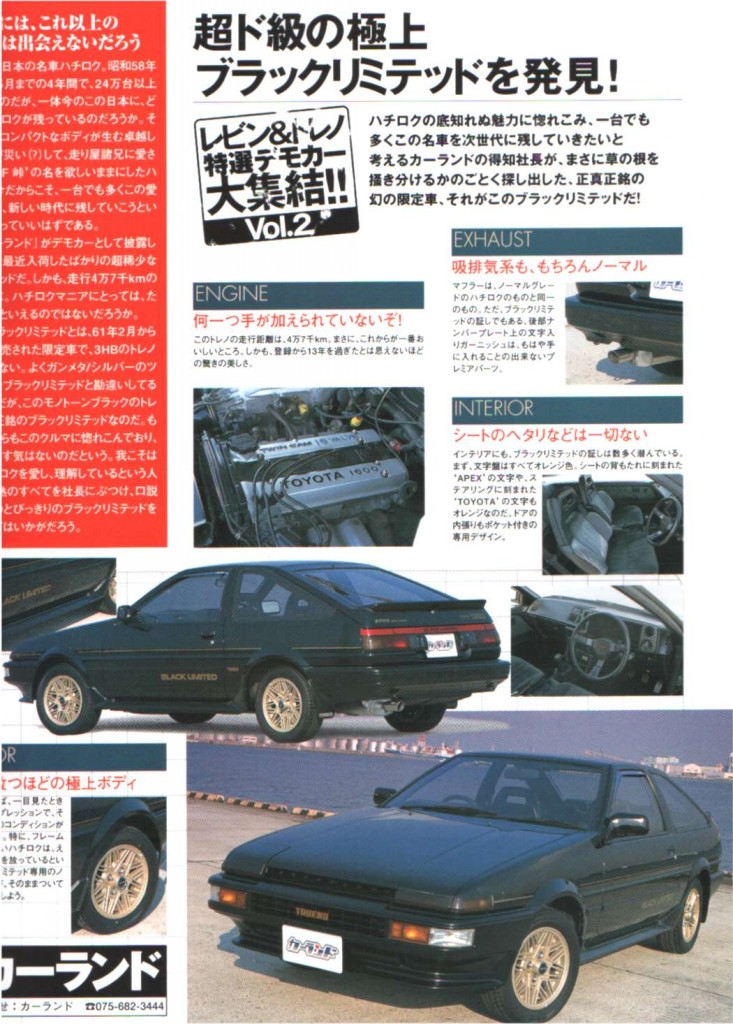

AE86, AE82, TRD, Vintage Showroom Catalogs

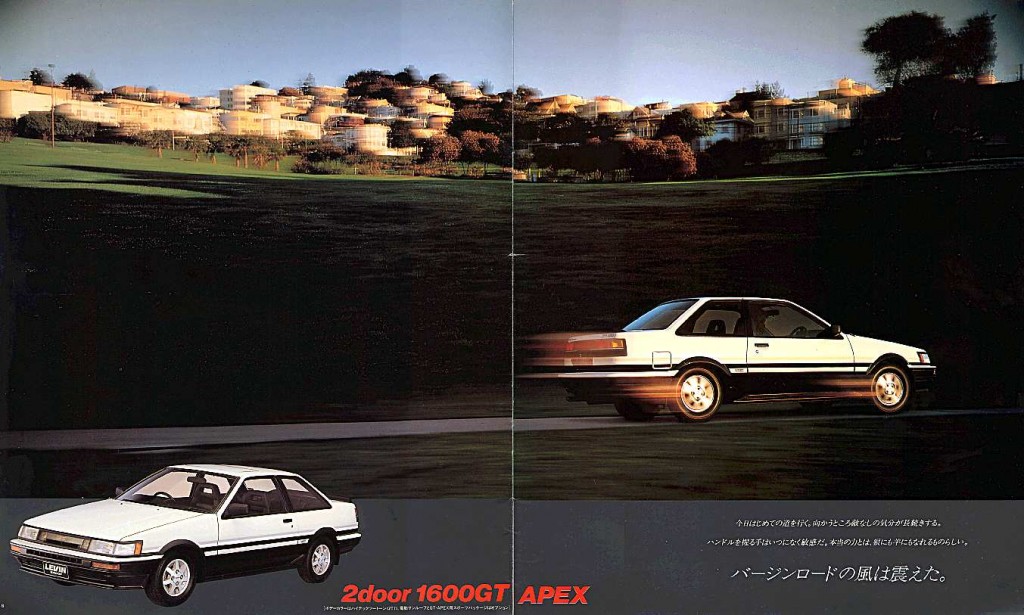

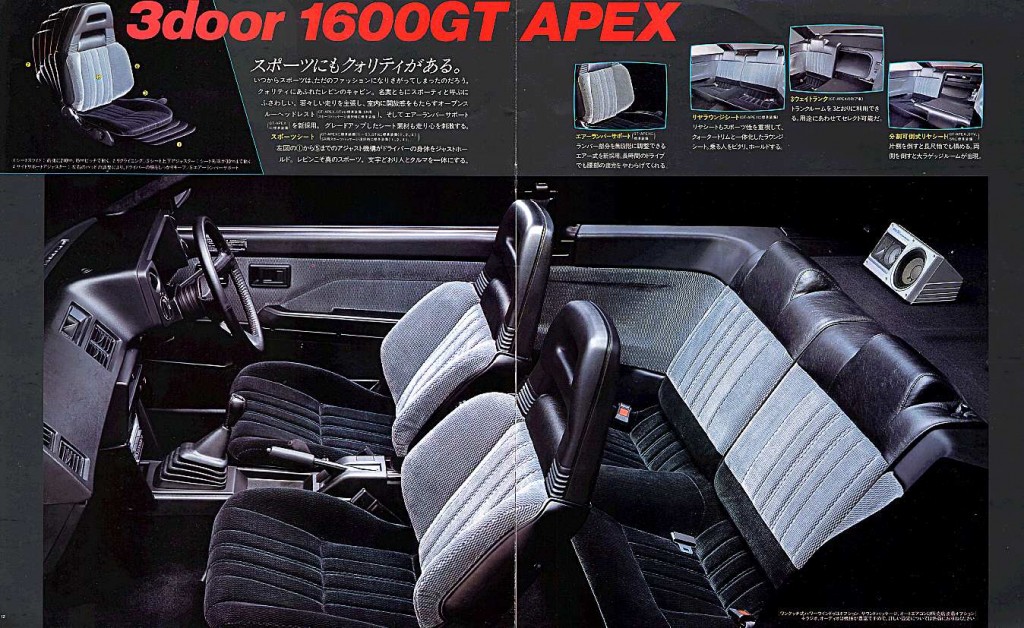

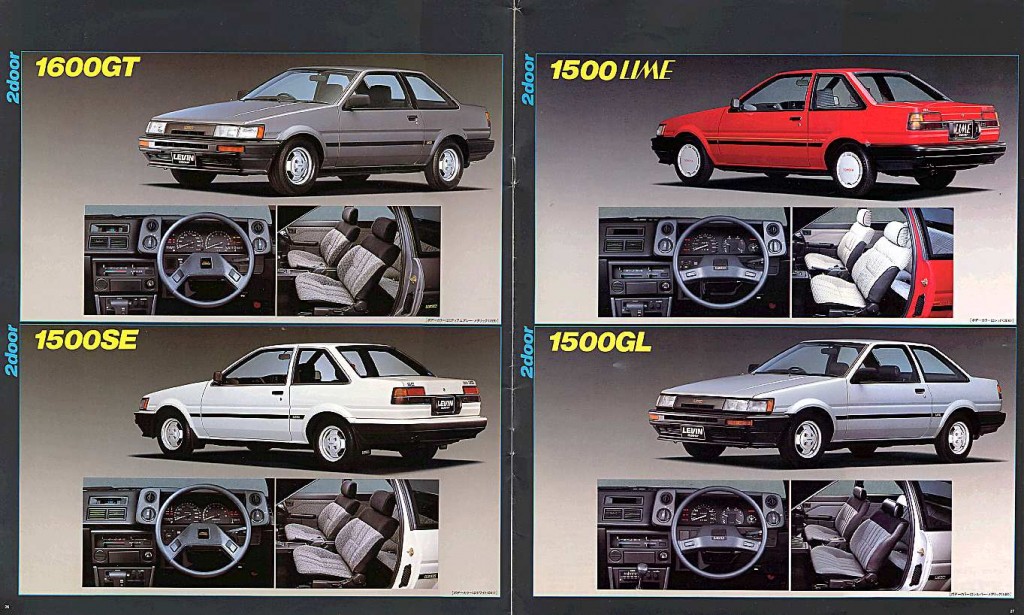

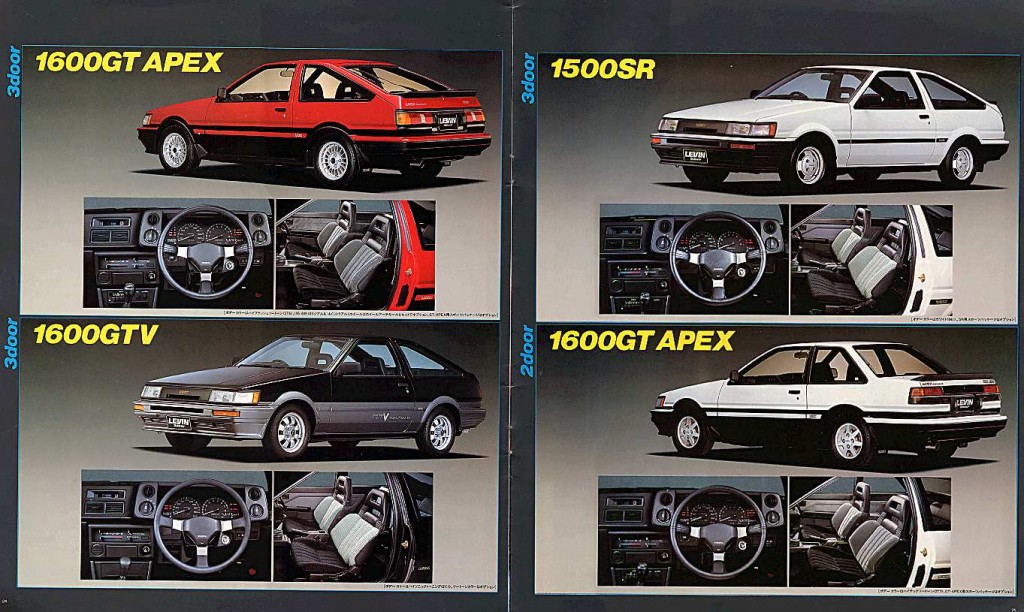

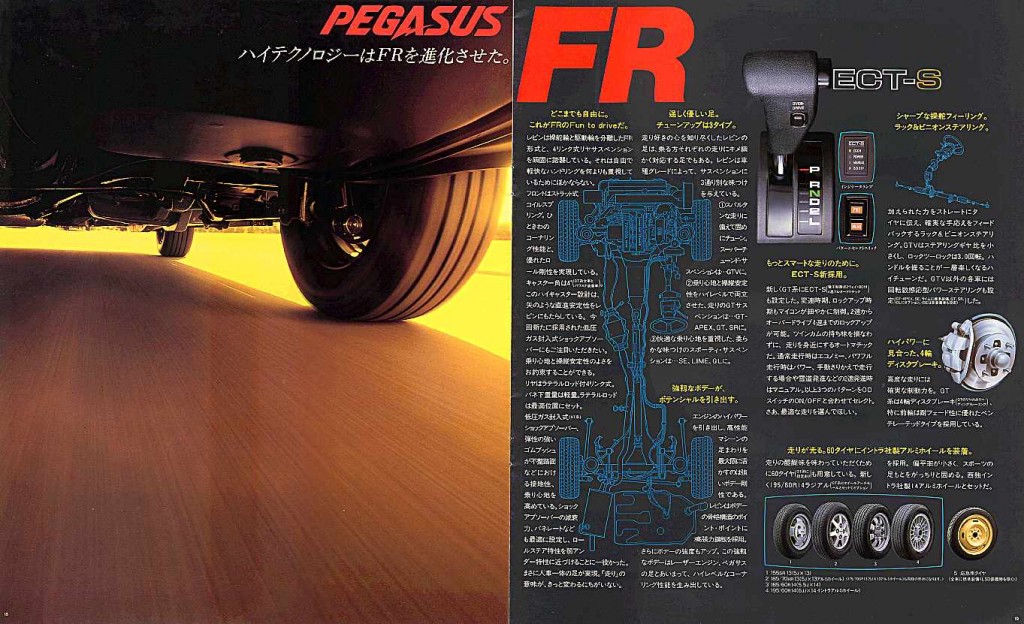

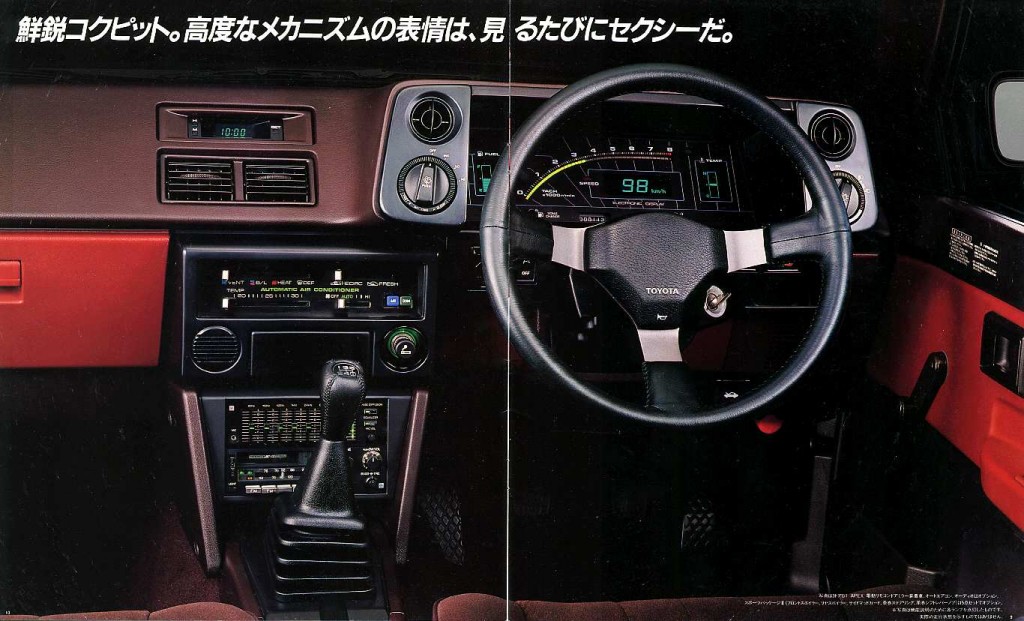

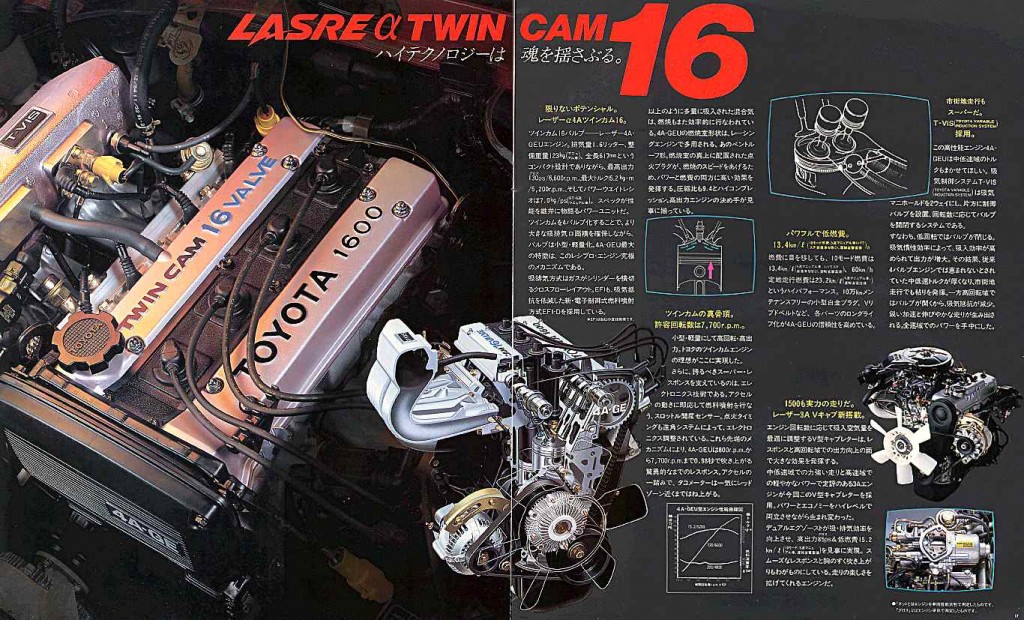

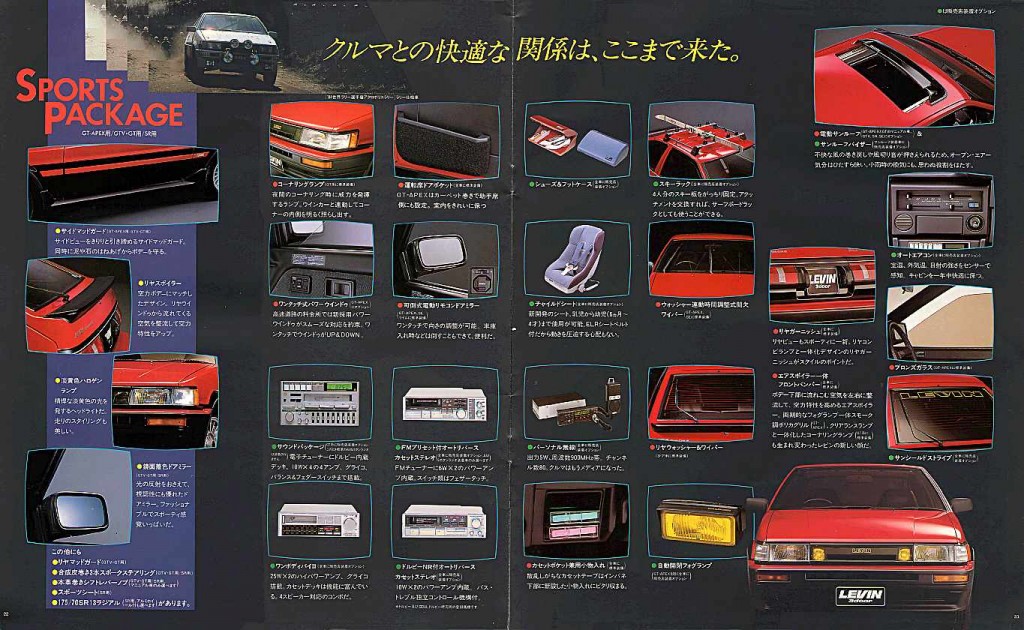

Japanese 1986 Corolla Levin Catalog
The Corolla Levin and Sprinter Trueno were sold in two separate dealership networks in Japan back in the 1980's, so the brochures are produced separately for the respective dealer networks.
Interestingly, both the Levin and Trueno featured the same GT-APEX grade with varying degrees of decontented lower grades.   Note also that the Japanese cars also featured a female-targeted AE85 called the Levin Lime, and Trueno Lisse.  If you look closely at the accessories, you can also see interesting era-specific items like covered bumper fog lamps, CB-band radio, and digital LED gauge pod illumination.

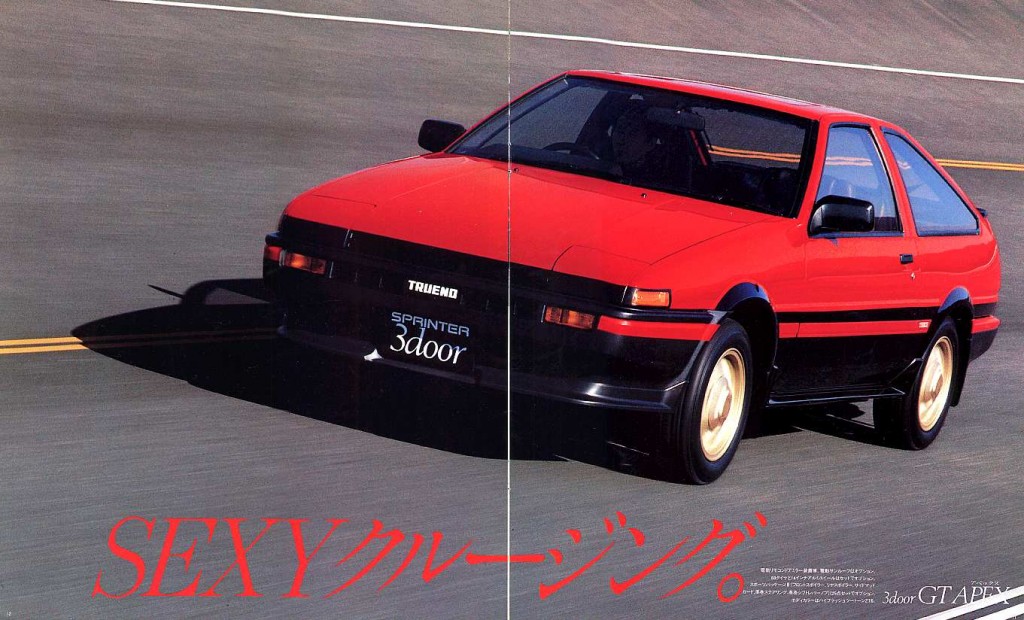

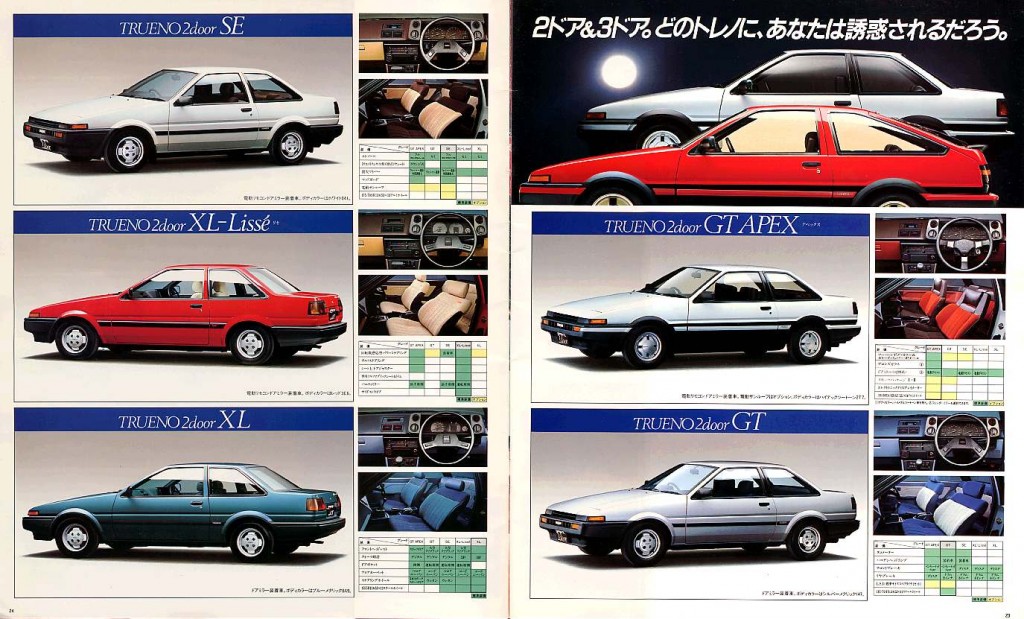

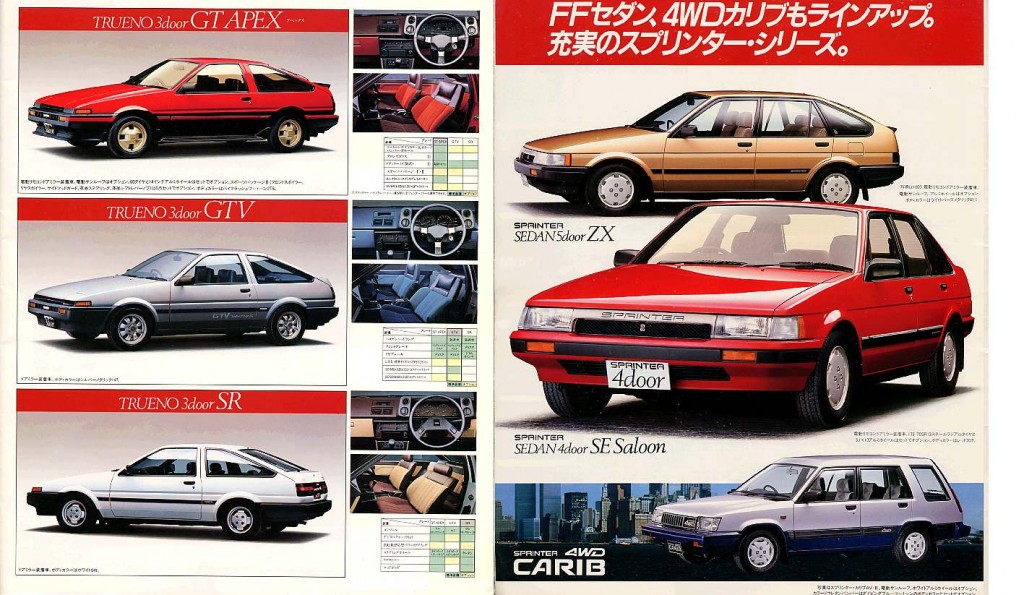

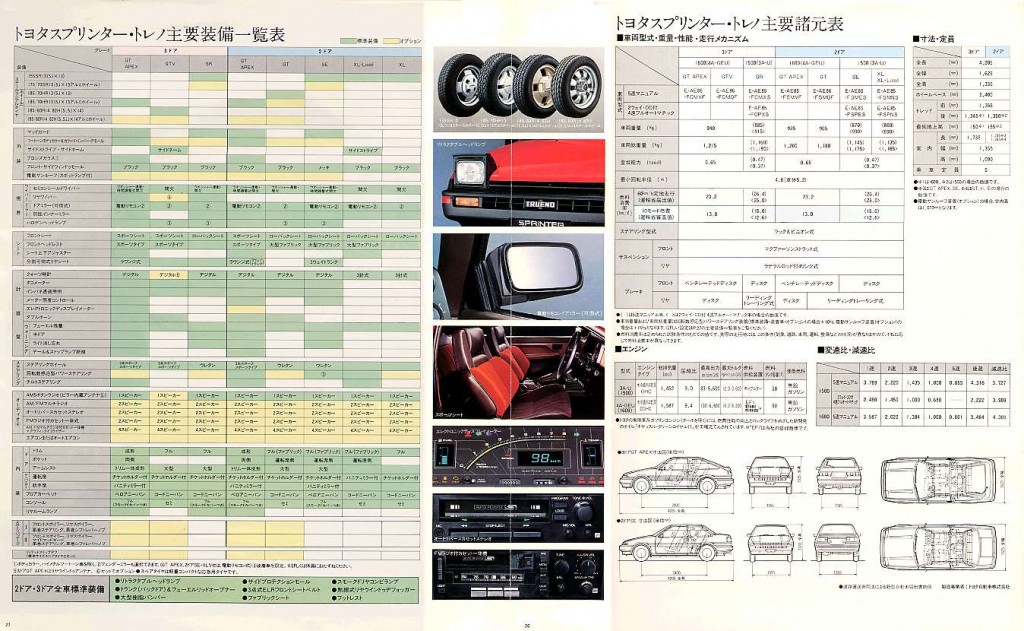

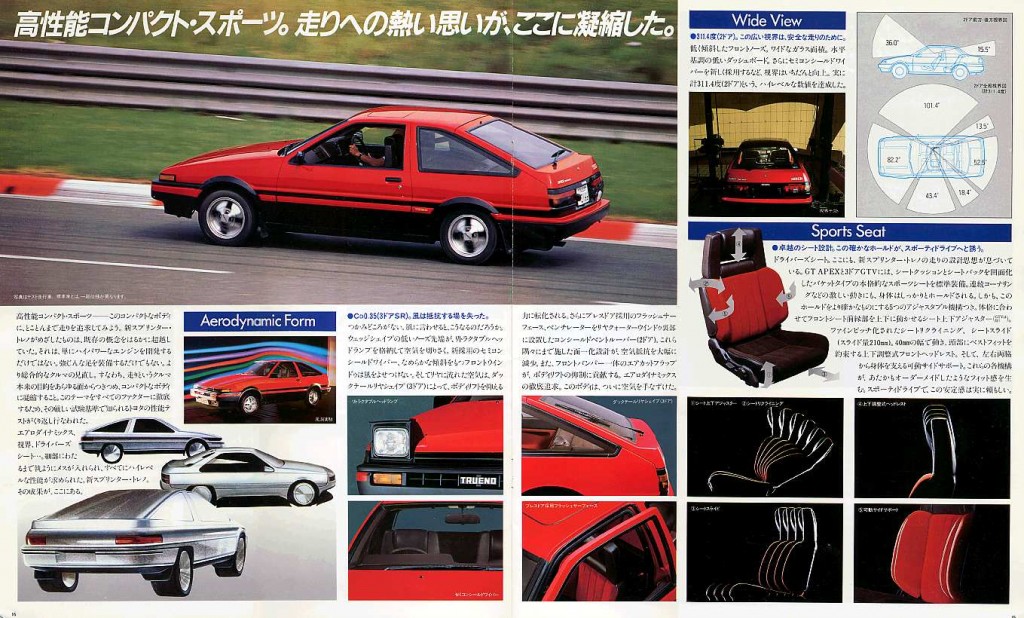

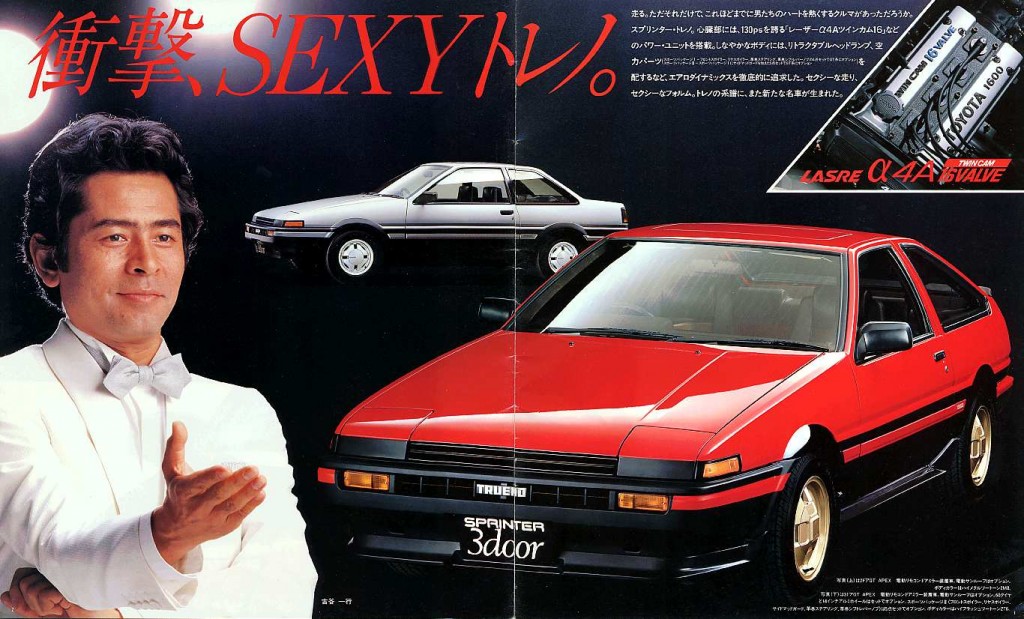

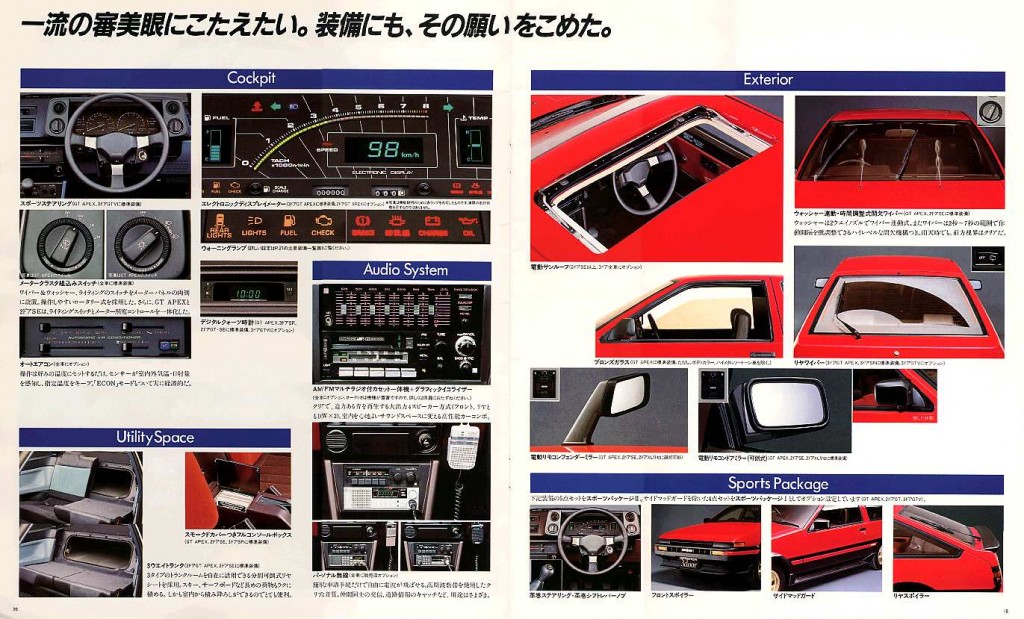

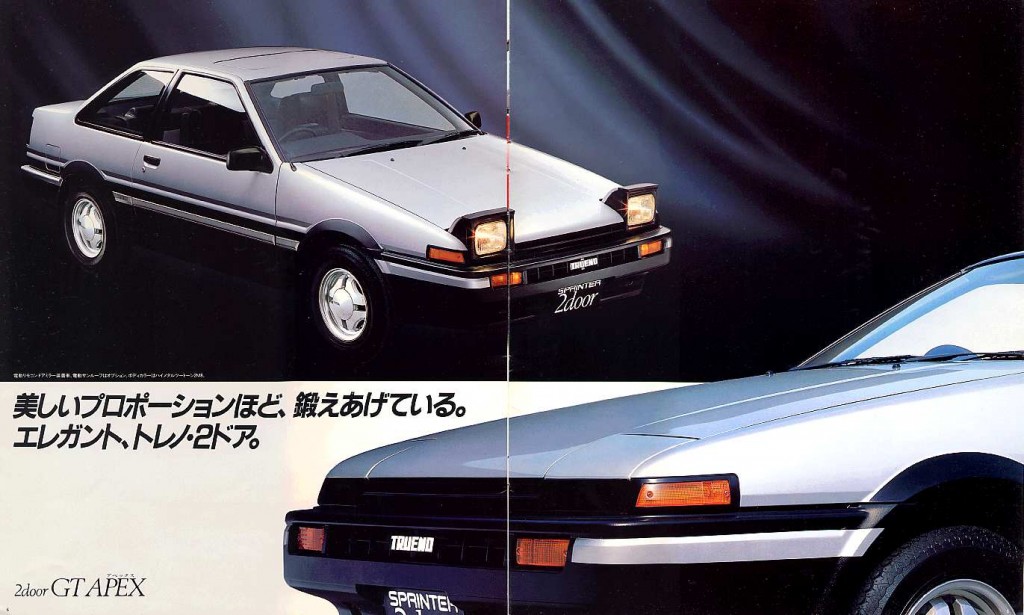

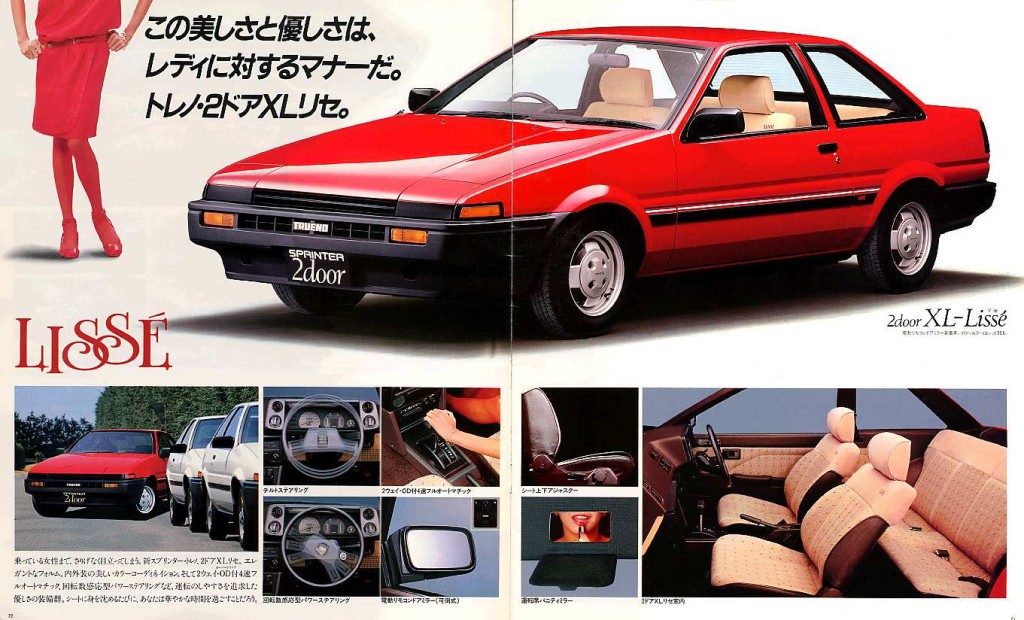

Japanese 1986 Sprinter Trueno Catalog

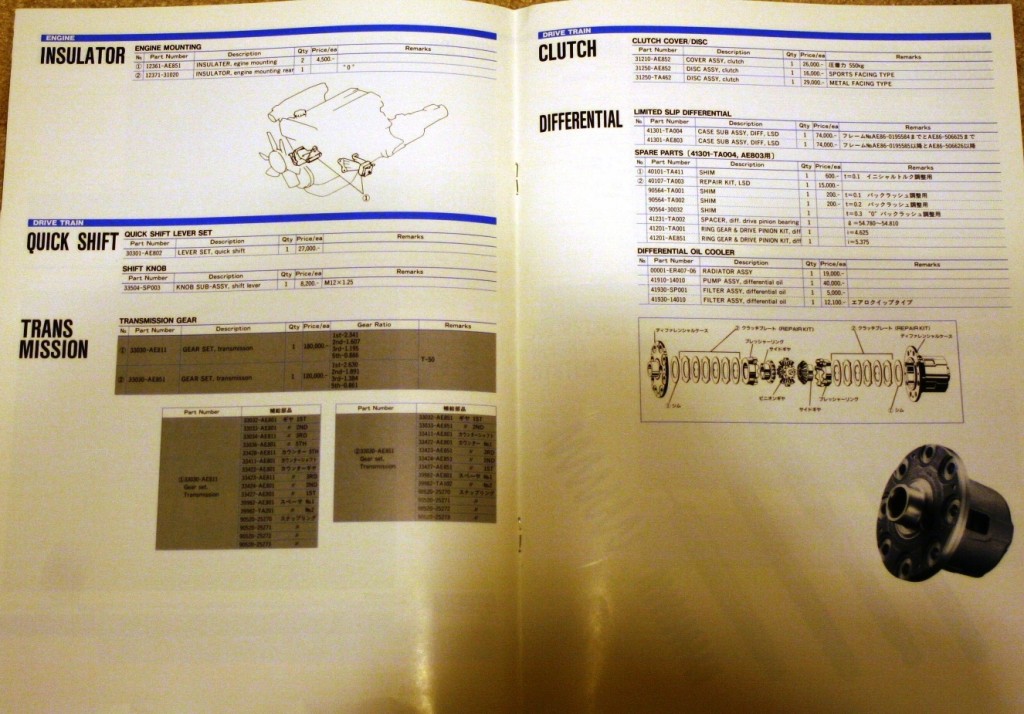

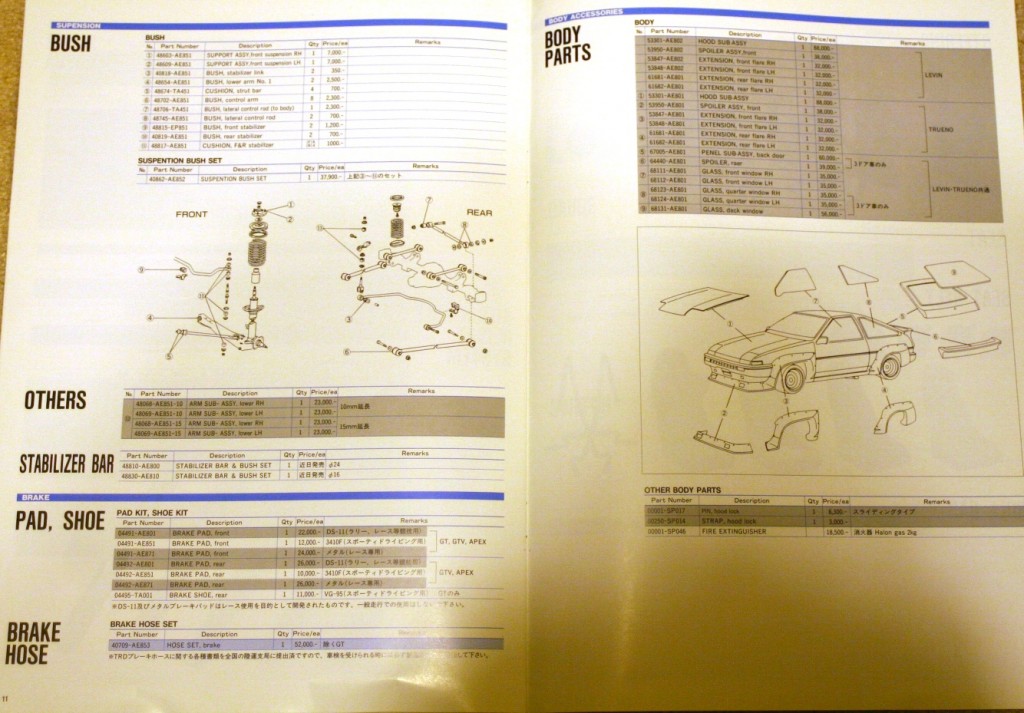

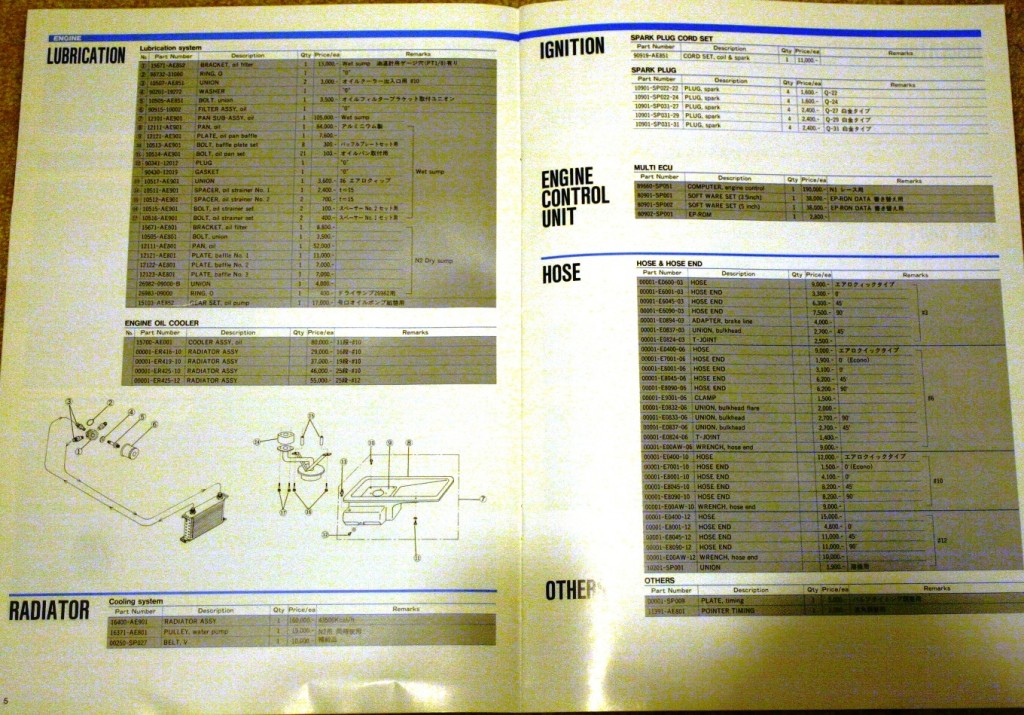

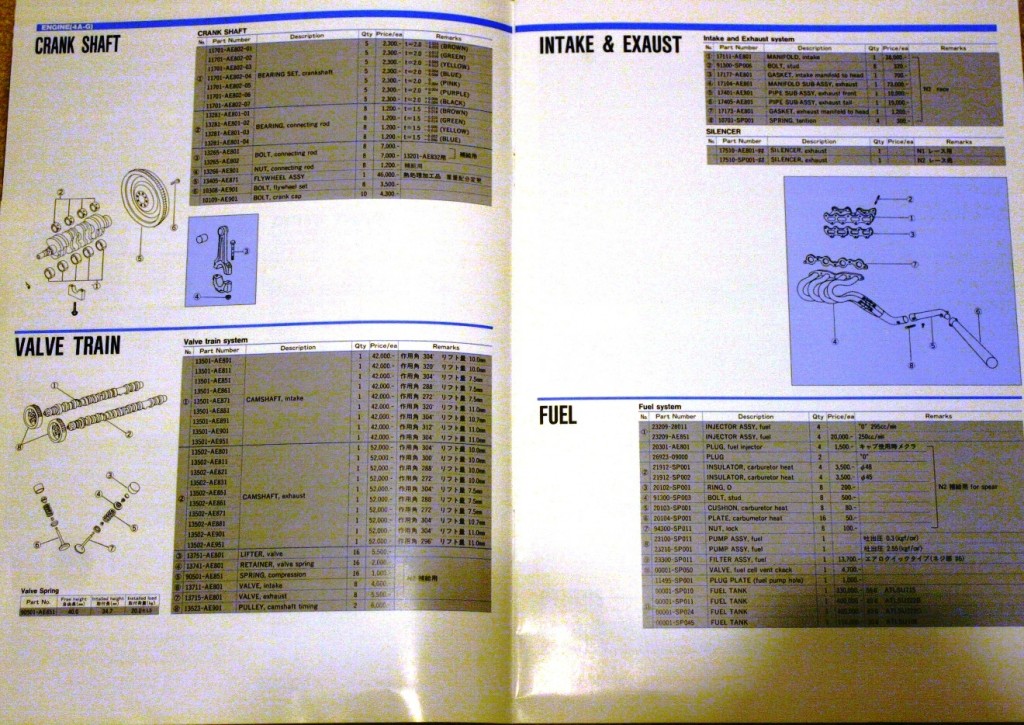

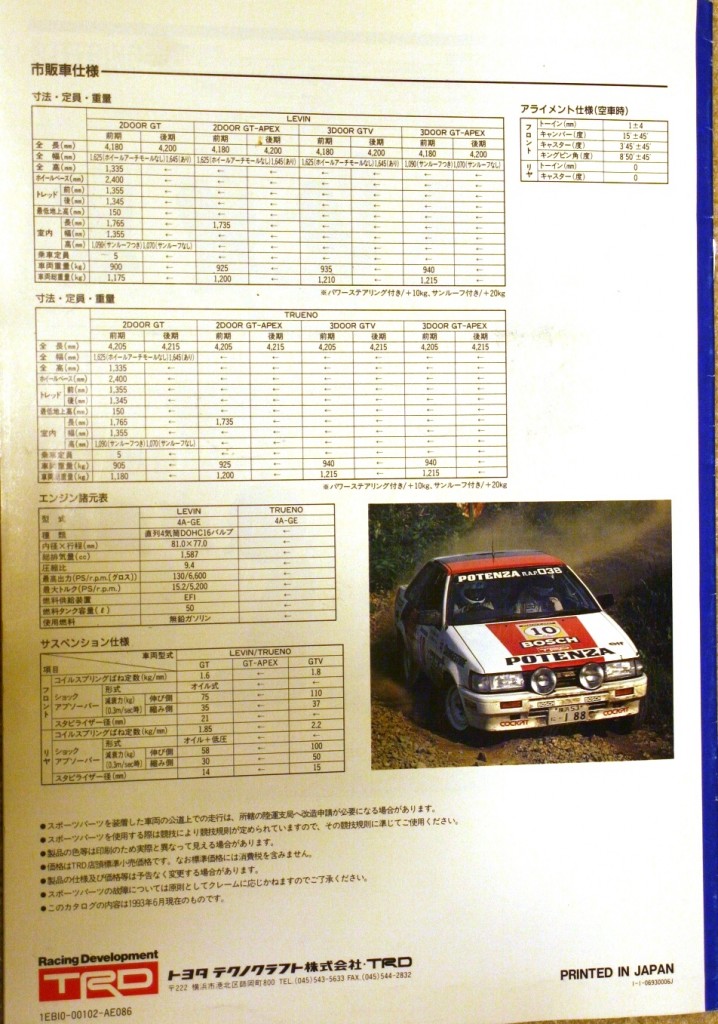

Japanese TRD AE86 Racing Parts Catalog

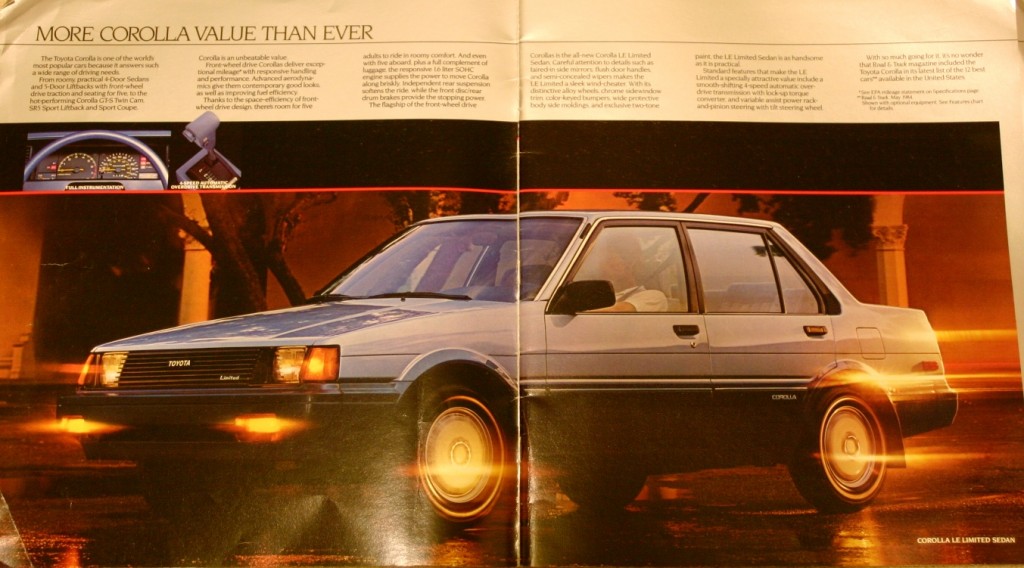

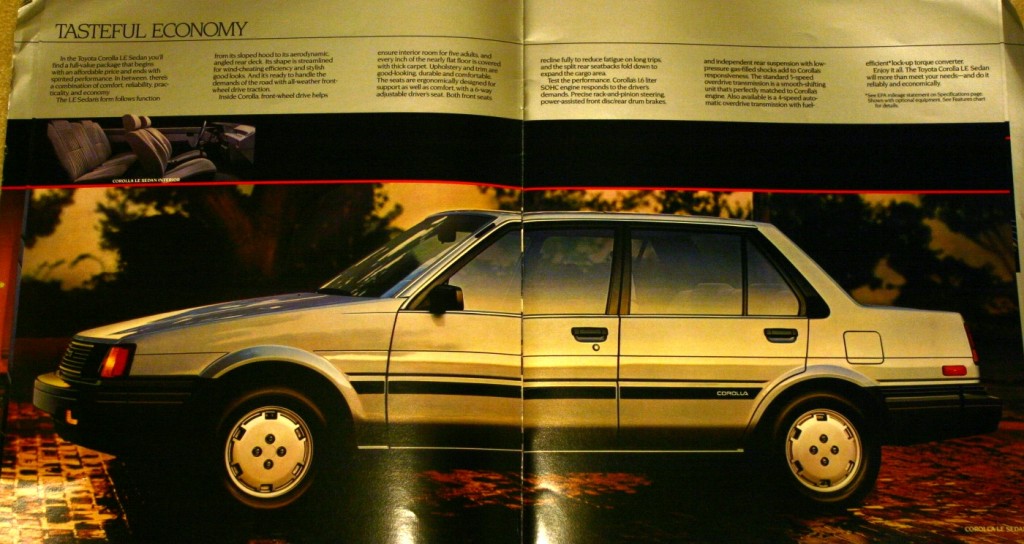

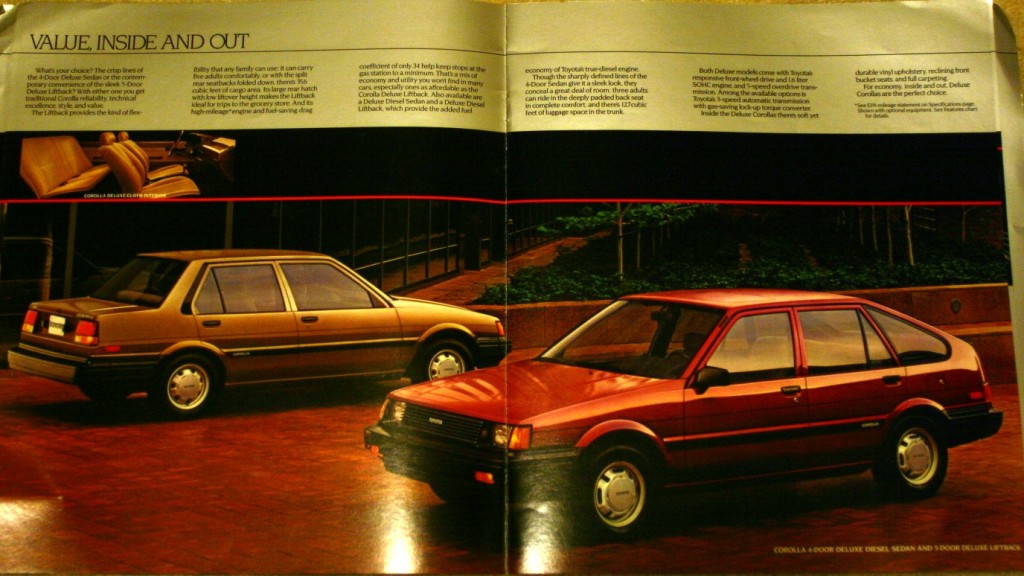

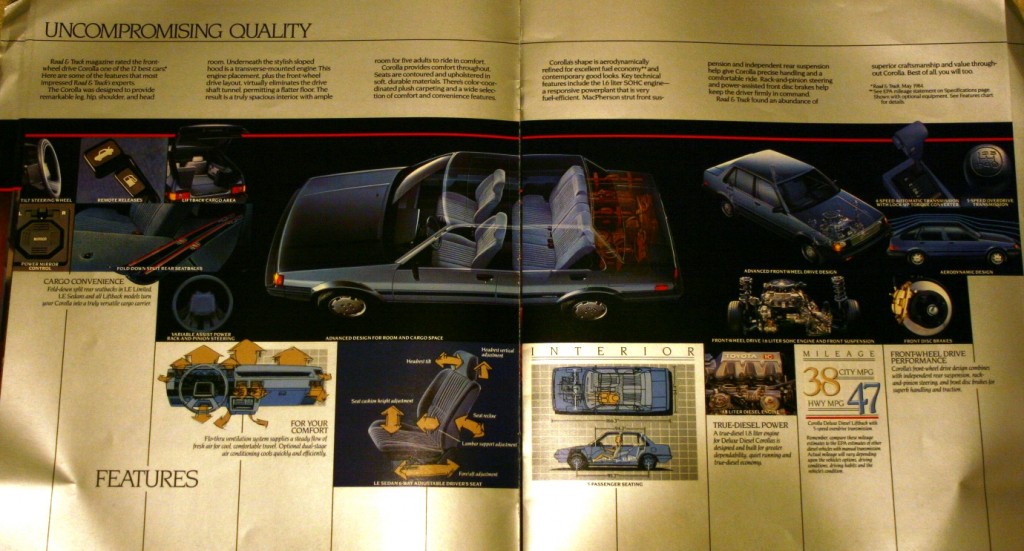

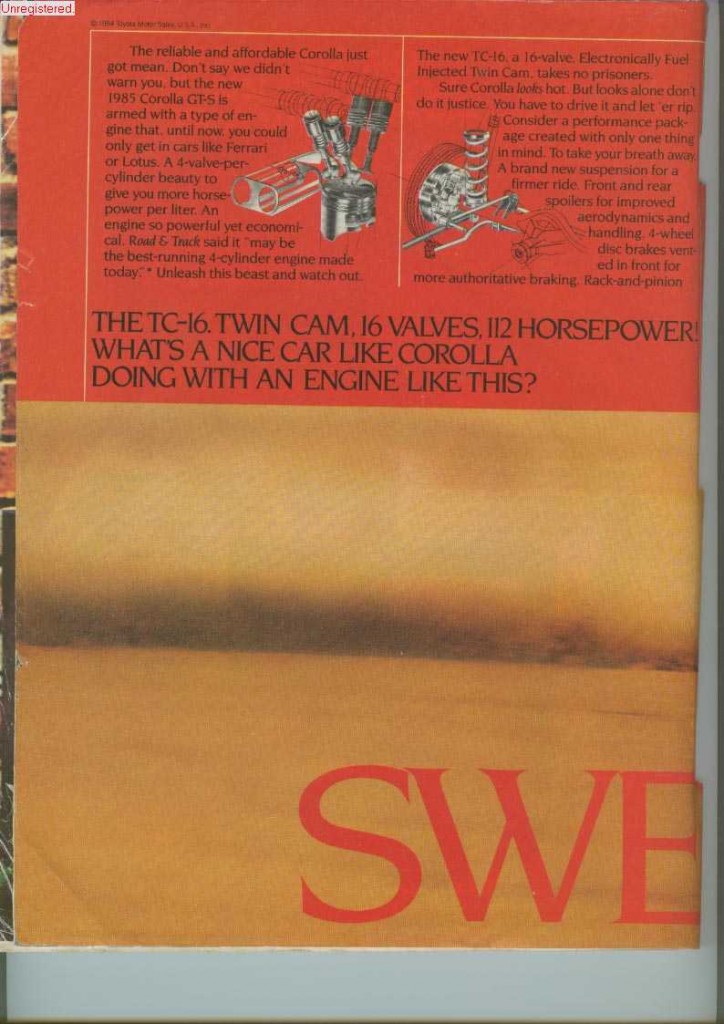

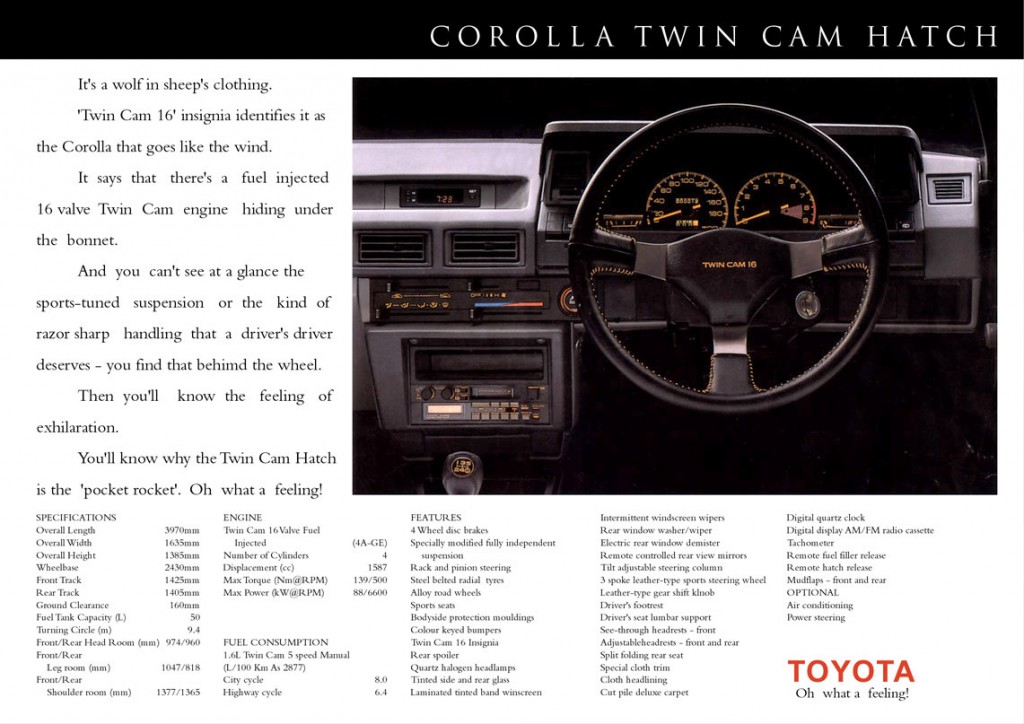

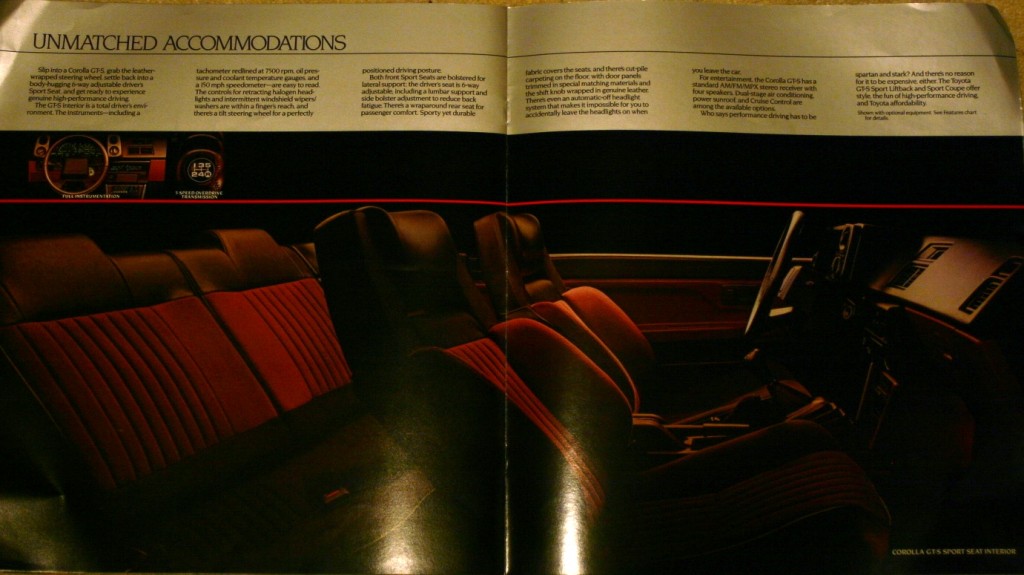

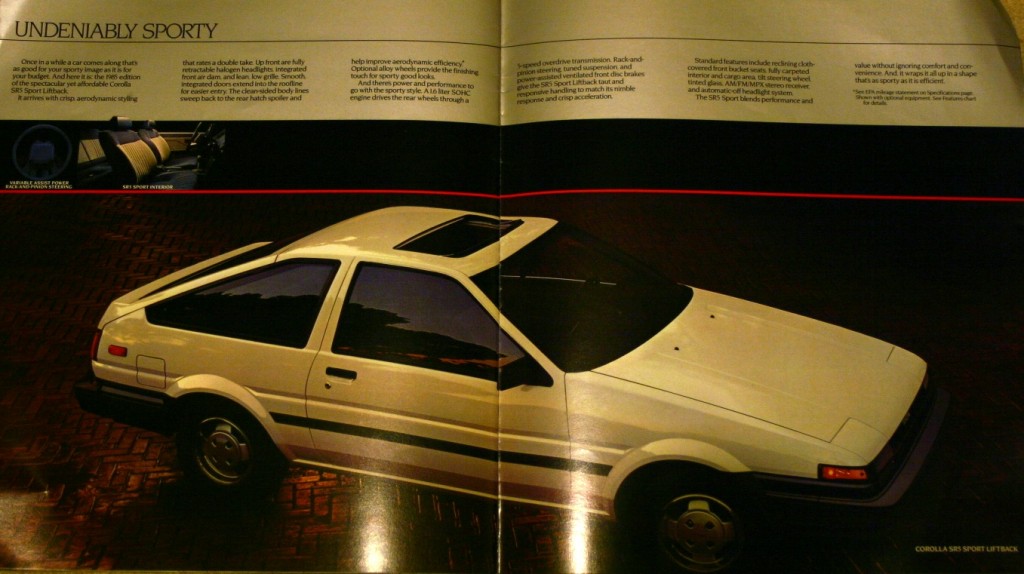

USA Corolla Catalogs 1980's

The post AE86, AE82, TRD, Vintage Showroom Catalogs appeared first on Club4AG.

]]> BUD’S HASSELGREN AE86 https://club4ag.com/limelight-buds-hasselgren-ae86-contributed-blog/ Sun, 05 Jul 2015 09:18:00 +0000 http://club4ag.com/?p=4968 Contributed Blog Entry from Auto-Lifers at the following website: Bud's Hasselgren Atlantic 4A-GE AE86 Corolla BUD’S HASSELGREN AE86 Rhett D'Andrade January 18, 2015 LIMELIGHT Since I was a little boy I have been immersed in the Motorsport culture here in Barbados.For those that don’t know, Barbados is a small island nestled in Lesser Antilles of the Caribbean and boy does it love some good motorsport. Rally is the dominant motorsport on the island and there has been no shortage of great machinery and talent coming out of the island over the years.The car above belongs to one of the many […]

The post BUD’S HASSELGREN AE86 appeared first on Club4AG.

]]>

Contributed Blog Entry from Auto-Lifers at the following website:
Bud's Hasselgren Atlantic 4A-GE AE86 Corolla

Ae86_hasselgren_rally_barbados1.jpgSince I was a little boy I have been immersed in the Motorsport culture here in Barbados.For those that don’t know, Barbados is a small island nestled in Lesser Antilles of the Caribbean and boy does it love some good motorsport. Rally is the dominant motorsport on the island and there has been no shortage of great machinery and talent coming out of the island over the years.Ae86_hasselgren_rally_barbados2.jpgThe car above belongs to one of the many competitors on the island Brendon McKenzie or best known as “Bud”. Like most rally guys Bud leaves his brain at home when the helmet goes on but ironically he is a very calm dude and always lends a hand to a fellow rallyist.Ae86_hasselgren_rally_barbados18.jpgIn the islands, rallying is made up predominately of tarmac stages very similar to Irish tarmac rally but with its own spin. As you can see the ride height on this Corolla isn’t your typical ’86 drifter, this car is intended for hard usage and wont stray away from a pothole or big jump. In usual rally car fashion it is function over form, there is no fancy body kit here just some big flares that serve there purpose and a fun livery to keep the sponsors happy.Ae86_hasselgren_rally_barbados5.jpgThe car runs in a group called M6 almost identical to the UK A6 group which keeps the car very true to its roots running a 1600cc motor, but that’s where the similarities stop. The group allows for homoloagated Super1600 cars to compete and if you know rallying, beating a Super1600 Clio or C2 is no small feat.

Ae86_hasselgren_rally_barbados8.jpgWith that in mind a simple well built 4AGE would not suffice. For anyone who is into 4AGEs or AE86s the simple lettering on the 20v cam cover should ring a bell. Hasselgren engineering for those who don’t know supplied engines for the Toyota Formula Atlantic Series. Dry sumped 1600cc 4AGEs cranking out 250bhp at 11,000rpms.

Ae86_hasselgren_rally_barbados9.jpgHowever, Bud will tell you his motor is the “Baby Gren” designed specifically for the M6 group, which doesn’t allow for a dry sump system or over-sized valves. This keeps the engine at a limited 215bhp at 9,000rpm controlled by a Vipec ECU. Hasselgren motors are the pinnacle of 4AGE engines, icons of AE86 enthusiasts. It’s amazing to know this is just one of 5 in the island, but more on those later.

Ae86_hasselgren_rally_barbados12.jpgTRD Formula Atlantic ITBs help the motor breathe and those carbon fiber stacks only make you wonder how good this motor sounds. Those three letters located on the fuel rail are never far when dealing with a high performance Toyota.

Ae86_hasselgren_rally_barbados10.jpgA JSP Formula Atlantic header deals with the exhaust side of the motor, a pity it’s wrapped but anything to keep engine bay temps down and not fry your navigator.

Ae86_hasselgren_rally_barbados15.jpgThe motor is fueled by VP 109 carried by a Group 4 fab Mk2 style fuel cell

Ae86_hasselgren_rally_barbados14.jpgA Holley red fuel pump distributes the VP 109 to the engine in tandem with an external swirl pot.

Ae86_hasselgren_rally_barbados20.jpgOne big problem most 4AGE users will come to at some point is the dreaded fragile T50 gearbox. As this is a car that was going to be beaten on Bud wanted something far more fast and reliable. For most avid rallyist this gear knob is easily identifiable. The box Bud opted for was a 6 speed Sadev sequential.

Ae86_hasselgren_rally_barbados22.jpgThe gearbox is superb and with flat shift controlled by the Vipec ECU there is barely an RPM drop between gears. Typically the interior is spartan with a flocked dash and an array of gauges and switches for Bud to monitor including a Geartronics display.

Ae86_hasselgren_rally_barbados31.jpgAe86_hasselgren_rally_barbados29.jpgNothing out of the ordinary here. Two well used OMP seats, obviously many hours have been spent strapped into the Sparco harnesses and certainly not the coolest place to be on a tropical island.

Ae86_hasselgren_rally_barbados30.jpgA Sparco racing wheel finds its spot at home and something most AE86 owners will be jealous of is electric power steering from an Opel Corsa. Barbados’s country roads can at times be barely fit for a well lifted truck so to see the Sparco seat cushions is no surprise. Also to be notice is the Group 4 fab adjustable pedal box.

Ae86_hasselgren_rally_barbados4.jpgPutting 212bhp to the ground doesn’t sound too hard but considering the standard rear end was only designed for 130bhp at best something different was certainly needed. This AE86 runs a built rear end from Weir Performance in California utilizing the same AE86 housing with 30mm axles and spool, and a 5.3 ratio ring and pinion.

Ae86_hasselgren_rally_barbados17.jpgMaking contact to the road is a miss matched set of 13″ by 7″ Compomotive rims wrapped in Hankook rally tires. To all the people thinking why the mismatched rims remember this is no trailer queen. Good rubber is only part of the equation, helping keep the tire contacted to the road is a pair of Bilstien fully adjustable coilovers upfront and AVO double adjustable coilovers in the rear.

Ae86_hasselgren_rally_barbados27.jpgGetting the car to a halt is done by a pair of Wilwood four pot calipers in the front and two pots in the rear. More than adequate given the car only weighs 960kg.


Ae86_hasselgren_rally_barbados25.jpgThe usual safety equipment is on-board including 2 fire extinguishers mounted on the diagonal cross members, and just behind the passenger seat is the extra small Odyssey battery.

Ae86_hasselgren_rally_barbados32.jpgThe bright yellow lever located in the passenger side foot well is actually the valve to an Accusump system stored behind the driver and passenger seat which stores pressurized oil in the event that the engine were to suddenly lose oil. This system also allows you to pre-lubricate the engine before start up. It’s a very good system to help insure the safety of a high strung motor especially without the use of a dry sump system.

Ae86_hasselgren_rally_barbados13.jpgThat flag looks odd doesn’t it?! Well in case you were wondering Brendon is a born Canadian that moved to the island as a kid, so he rocks the half maple leaf half trident flag.

Ae86_hasselgren_rally_barbados7.jpgThe class Bud is in has been dominated by another local driver for the past few years. But the 2014 season saw a good shake up with three drivers battling for points including Bud making it a super competitive and fun group to watch.

Ae86_hasselgren_rally_barbados11.jpgOverall the car is a seriously competitive package and Bud doesn’t fail to entertain the crowd so if you get a chance check out MCK Motorsport Facebook page for videos or a simple search in YouTube should suffice.

Ae86_hasselgren_rally_barbados23.jpgAs the shoot was wrapping up being that it was my first time shooting a car the only thing I could think about is if there was any thing I had missed or could I have done something better. Well all I can say is nothing takes your mind off something like riding in the hot seat of a rally car. Even though this was not my first time riding shotgun with Brendan nothing prepares you for a violent 1600, the sequential is silky smooth but the motor just sounds like it wants to attack something. Gears go by in milliseconds and everything is loud and unhinged. It was just a short drive back to his garage but none the less you always get out a car like that with a big grin, if you don’t your probably dead inside.

Ae86_hasselgren_rally_barbados3.jpgThanks goes out to Brendon for bringing the car out in the scorching Bajan heat and look out for more content from Barbados in the future.

Words & Photos: Rhett D’Andrade

Spec



  • Make
    • Toyota
  • Model
    • Ae86 Levin Coupe
  • Engine
    • Hasselgren “Baby gren” 1600c 4age 20v
    • Carillo Rods
    • Cp pistons
    • Atlantic Crank
    • Formula Atlantic ITBs
    • Toda cam Gears
    • Toda timing belt
    • JSP FA header
    • Vipec Ecu
    • Drivetrain
    • Tilton single disc clutch & pressure plate
    • Sadev 6 speed sequential scl82 with Flat shift
    • Cbradley Motorsports 2 piece prop shaft
    • Weir Performance Spool & 30mm axles
    • Weir Performance 5.3 CWP
  • Suspension
    • Front adjustable Bilstien
    • Rear double adjustable AVO
    • T3 Lower arms
    • T3 4 links
  • Brakes
    • Wilwood 4 pot calipers upfront
    • Suzuki gts 2 pot rear
    • Wheels & Tires
    • Compomotive 13″*7″
    • Hankook Ventus z209 soft compound
  • Interior
    • Grp 4 rhd pedal box
    • Omp seat
    • Sparco 4 point Harnesses
    • Sparco racing wheel



The post BUD’S HASSELGREN AE86 appeared first on Club4AG.

]]> Cusco Progressive Equipement, company of automotive passion https://club4ag.com/cusco-a-company-of-automotive-passion/ Mon, 27 Apr 2015 04:30:27 +0000 http://club4ag.com/?p=4322 Cusco Progressive Equipement, company of automotive passion   Here is a 1985 Toyota Corolla Levin (AE86), driven by the late founder, rally driver, and a motorsports fanatic, Mr.Kase, who dearly loved to race, and grew a parts business from this, in the 1970's, long before he renamed his operation Cusco, from Carrosser. You ask what the difference is between a Cusco part, and some replica parts? Well we have always raced, and rallied to prove our parts first as a hobby, and professional motorsport. And then, as a product after people wanted to equip their cars with the parts we […]

The post Cusco Progressive Equipement, company of automotive passion appeared first on Club4AG.

]]>


Cusco Progressive Equipement, company of automotive passion

p1 (2)



Here is a 1985 Toyota Corolla Levin (AE86), driven by the late founder, rally driver, and a motorsports fanatic, Mr.Kase, who dearly loved to race, and grew a parts business from this, in the 1970's, long before he renamed his operation Cusco, from Carrosser.

You ask what the difference is between a Cusco part, and some replica parts? Well we have always raced, and rallied to prove our parts first as a hobby, and professional motorsport. And then, as a product after people wanted to equip their cars with the parts we made.

We still carry this tradition, with continuous efforts in All-Japan Rally, and partners in all forms of racing in Japan, Europe, East Asia, Australia, and in the USA.

When you're buying Cusco, you are buying a legacy of a man, his passion that is kept alive by our staff, and the true meaning of what automotive fanaticism and enthusiasm is all about.

135599526601513124415 n7l5moz6 img20090611003204187 2kgtr415  10502057_10204447371880630_7324147822288643315_n
